Fully insulated Female disconnect Terminals

Short Description:

Streamlining Wire Termination with Easy Entry Funnel

The Easy Entry funnel is a cutting-edge tool that has been meticulously engineered to expedite the wire termination process while guaranteeing a high level of reliability in the crimped connection. This tool comes in two variations: single grip and double grip, both of which are designed with funnel easy entry to facilitate the wire insertion process.

Using the Easy Entry funnel speeds up the insertion of the wire, eliminating the possibility of strands folding back and reducing the risk of short-circuits. The funnel’s design also reduces stripping tolerances, making the entire process faster and simpler, and significantly reducing the likelihood of errors and rejects.

By implementing the Easy Entry funnel, the wire termination process is optimized, installation time is significantly reduced, and businesses can improve their overall productivity and operational efficiency.

Send email to us

Product Detail

Product Tags

Basic Data

Nominal Current Ratings

Terminal colour	Red	Blue	Black	Yellow
Conductor Range(mm²)	0.5-1.6	1.0-2.6	2.5-4	2.5-6.0
Ring Terminal	24A	32A	37A	48A
Forked Spade	18A	24A	30A	36A
Pin Connector	12A	16A	20A	24A
Lip/Flat Blade	24A	32A	37A	48A
Bullet	12A	16A	/	24A
In Line Splice	24A	32A	/	48A
Quick Connector	24A	32A	/	48A
End Connector	24A	32A	/	48A

These ratings are a notional suggestions and cover most situations. It assumes defect-free workmanship, natural ambient conditions.

Stripping Lengths

Terminal colour	Red	Blue	Black	Yellow
Conductor Range (mm²)	0.5-1.6	1.0-2.6	2.5-4	2.5-6.0
Strip Length for Terminals	4-5mm	5-6mm	5-6mm	6-7mm
Strip Length for Line Splice	7-8mm	7-8mm	7-8mm	7-8mm

In general, the wire should protrude 1mm out of the front of the terminal

SPECIFICATION

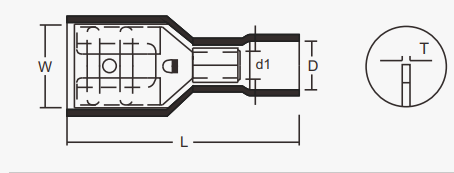

	Single Grip	Double Grip	Tab Size	Dimensions
	Single Grip	Double Grip	Tab Size	W	L	T
H=11.0 d1=1.7 D=3.7	FDFD 1.25-110(5)	FDFG 1.25-110(5)	2.8x0.5	3.2	19.0	0.3
	FDFD 1.25-110(8)	FDFG 1.25-110(8)	2.8x0.8	3.2	19.0	0.3
	FDFD 1.25-187(5)	FDFG 1.25-187(5)	4.75x0.5	5.0	20.5	0.35
	FDFD 1.25-187(8)	FDFG 1.25-187(8)	4.75x0.8	5.0	20.5	0.35
	FDFD 1.25-250	FDFG 1.25-250	6.35x0.8	6.6	21.8	0.4
H=11.0 d1=2.3 D=4.2	FDFD 2-110(5)	FDFG 2-110(5)	2.8x0.5	3.2	19.0	0.3
	FDFD 2-110(8)	FDFG 2-110(8)	2.8x0.8	3.2	19.0	0.3
	FDFD 2-187(5)	FDFG 2-187(5)	4.75x0.5	5.0	20.2	0.35
	FDFD 2-187(8)	FDFG 2-187(8)	4.75x0.8	5.0	20.2	0.35
	FDFD 2-250	FDFG 2-250	6.35x0.8	6.6	22.2	0.4
H=11.0 d1=3.4 D=5.6	FDFD 5.5-250	FDFD 5.5-250	6.35x0.8	6.6	24.2	0.4
