Piggy back Female disconnect Terminals

Short Description:

Revolutionize Wire Termination with Easy Entry Funnel

The Easy Entry funnel is an innovative solution that has been specially designed to accelerate the wire termination process while ensuring optimal reliability of the crimped connection. This state-of-the-art tool comes in two versions: single grip and double grip, both of which feature the funnel easy entry design to facilitate the wire insertion process.

By utilizing the Easy Entry funnel, wire insertion is expedited, and the possibility of strands folding back is eliminated, minimizing the risk of short-circuits. Moreover, the funnel’s design reduces stripping tolerances, resulting in a faster and simpler operation that significantly reduces the likelihood of errors and rejects.

Implementing the Easy Entry funnel streamlines the wire termination process, significantly reduces installation time, and enhances operational efficiency, making it an ideal solution for businesses seeking to improve productivity.

Send email to us

Product Detail

Product Tags

Basic Data

Nominal Current Ratings

Terminal colour	Red	Blue	Black	Yellow
Conductor Range(mm²)	0.5-1.6	1.0-2.6	2.5-4	2.5-6.0
Ring Terminal	24A	32A	37A	48A
Forked Spade	18A	24A	30A	36A
Pin Connector	12A	16A	20A	24A
Lip/Flat Blade	24A	32A	37A	48A
Bullet	12A	16A	/	24A
In Line Splice	24A	32A	/	48A
Quick Connector	24A	32A	/	48A
End Connector	24A	32A	/	48A

These ratings are a notional suggestions and cover most situations. It assumes defect-free workmanship, natural ambient conditions.

Stripping Lengths

Terminal colour	Red	Blue	Black	Yellow
Conductor Range (mm²)	0.5-1.6	1.0-2.6	2.5-4	2.5-6.0
Strip Length for Terminals	4-5mm	5-6mm	5-6mm	6-7mm
Strip Length for Line Splice	7-8mm	7-8mm	7-8mm	7-8mm

In general, the wire should protrude 1mm out of the front of the terminal

SPECIFICATION

	Single Grip	Double Grip	Tab Size	Dimensions

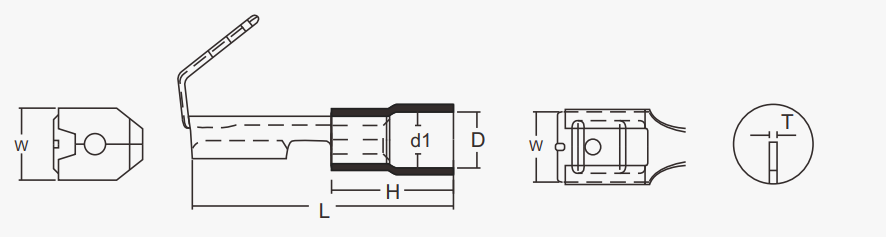

	Single Grip	Double Grip	Tab Size	W	L	T
H=10.0 d1=1.7 D=4 T=0.4	PBDD 1.25-250	PBDG 1.25-250	6.35x0.8	6.60	6.35	22.00
H=10.0 d1=2.3 D=4.5 T=0.4	PBDD 2-250	PBDG 2-250	6.35x0.8	6.60	6.35	22.00
H=13.0 d1=3.4 D=5.5 T=0.4	PBDD 5.5-250	PBDG 5.5-250	6.35x0.8	6.60	6.35	24.00
