Basic Data
Nominal Current Ratings
|
Terminal colour |
Red |
Blue |
Black |
Yellow |
|
Conductor Range(mm²) |
0.5-1.6 |
1.0-2.6 |
2.5-4 |
2.5-6.0 |
|
Ring Terminal |
24A |
32A |
37A |
48A |
|
Forked Spade |
18A |
24A |
30A |
36A |
|
Pin Connector |
12A |
16A |
20A |
24A |
|
Lip/Flat Blade |
24A |
32A |
37A |
48A |
|
Bullet |
12A |
16A |
/ |
24A |
|
In Line Splice |
24A |
32A |
/ |
48A |
|
Quick Connector |
24A |
32A |
/ |
48A |
|
End Connector |
24A |
32A |
/ |
48A |
These ratings are a notional suggestions and cover most situations. It assumes defect-free workmanship, natural ambient conditions.
Stripping Lengths
|
Terminal colour |
Red |
Blue |
Black |
Yellow |
|
Conductor Range (mm²) |
0.5-1.6 |
1.0-2.6 |
2.5-4 |
2.5-6.0 |
|
Strip Length for Terminals |
4-5mm |
5-6mm |
5-6mm |
6-7mm |
|
Strip Length for Line Splice |
7-8mm |
7-8mm |
7-8mm |
7-8mm |
In general, the wire should protrude 1mm out of the front of the terminal

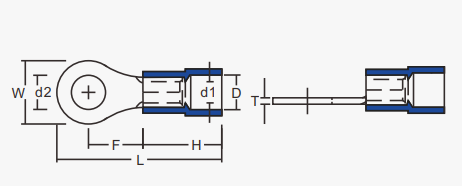

SPECIFICATION
|
Cross section (mm²) |
Item No. |
Dimensions(mm) |
||||||
|
I1 |
I2 |
s1 |
s2 |
d1 |
d2 |
A.W.G |
||
|
0.34 |
E0306 |
11 |
6 |
0.15 |
0.3 |
0.8 |
1.9 |
#24 |
|
E0308 |
13 |
8 |
||||||
|
0.5 |
E0506 |
12 |
6 |
0.15 |
0.3 |
1.0 |
2.6 |
#22 |
|
E0508 |
14 |
8 |
||||||
|
E0510 |
16 |
10 |
||||||
|
E0512 |
18 |
12 |
||||||
|
0.75 |
E7506 |
12 |
6 |
0.15 |
0.3 |
1.2 |
2.8 |
#20 |
|
E7508 |
14 |
8 |
||||||
|
E7510 |
16 |
10 |
||||||
|
E7512 |
18 |
12 |
||||||
|
1.0 |
E1006 |
12 |
6 |
0.15 |
0.3 |
1.4 |
3.0 |
#18 |
|
E1008 |
14 |
8 |
||||||
|
E1010 |
16 |
10 |
||||||
|
E1012 |
18 |
12 |
||||||
|
1.5 |
E1508 |
14.5 |
8 |
0.15 |
0.3 |
2.3 |
4.0 |
#14 |
|
E1510 |
16.5 |
10 |
||||||
|
E1512 |
19.5 |
12 |
||||||
|
E1518 |
25.5 |
18 |
||||||
|
2.5 |
E2508 |
15.5 |
8 |
0.15 |
0.3 |
2.3 |
4.0 |
#14 |
|
E2510 |
17.5 |
10 |
||||||
|
E2512 |
19.5 |
12 |
||||||
|
E2518 |
25.5 |
18 |
||||||
|
4.0 |
E4009 |
16.5 |
9 |
0.2 |
0.4 |
2.8 |
4.5 |
#12 |
|
E4010 |
17.5 |
10 |
||||||
|
E4012 |
19.5 |
12 |
||||||
|
E4018 |
25.5 |
18 |
||||||
|
6.0 |
E6010 |
20 |
10 |
0.2 |
0.4 |
3.5 |
6.0 |
#10 |
|
E6012 |
22 |
12 |
||||||
|
E6018 |
28 |
18 |
||||||
|
10.0 |
E10-12 |
22 |
12 |
0.2 |
0.5 |
4.5 |
7.6 |
#8 |
|
E10-18 |
28 |
18 |
||||||
|
16.0 |
E16-12 |
22 |
12 |
0.2 |
0.5 |
5.8 |
8.7 |
#6 |
|
E16-18 |
28 |
18 |
||||||
|
25.0 |
E25-16 |
28 |
16 |
0.2 |
0.5 |
7.5 |
11.0 |
#4 |
|
E25-18 |
30 |
18 |
||||||
|
E25-22 |
34 |
22 |
||||||
|
35.0 |
E35-16 |
30 |
16 |
0.2 |
0.5 |
8.3 |
12.5 |
#2 |
|
E35-18 |
32 |
28 |
||||||
|
E35-25 |
39 |
25 |
||||||
|
50.0 |
E50-20 |
36 |
20 |
0.3 |
0.5 |
10.3 |
15.0 |
#1 |
|
E50-25 |
41 |
25 |
||||||
|
70.0 |
E70-20 |
37 |
20 |
0.4 |
0.5 |
13.5 |
16.0 |
2/0 |
|
E70-27 |
42 |
27 |
||||||
|
95.0 |
E95-25 |
44 |
25 |
0.4 |
0.8 |
14.5 |
18.0 |
3/0 |
|
120 |
E120-27 |
47.6 |
27 |
0.45 |
0.8 |
16.5 |
20.3 |
4/0 |
|
150 |
E150-32 |
53 |
32 |
0.5 |
1.0 |
19.6 |
23.4 |
250/300 |
