Pre-Insulated Blade Terminals

Short Description:

Introducing the Easy Entry Funnel for Efficient Wire Termination

Looking for a way to speed up your wire termination process while ensuring maximum reliability of the crimped connection? Look no further than the Easy Entry funnel! Designed with only single grip and double grip options, this innovative tool streamlines the wire insertion process with its unique funnel entry.

Not only does the Easy Entry funnel speed up the wire insertion process, it also helps avoid strands folding back, minimizing the risk of short-circuits. In addition, the funnel reduces stripping tolerances, simplifying the entire operation and reducing errors and rejects.

With the Easy Entry funnel, you can significantly reduce installation time and make your wire termination process more efficient than ever before. Whether you’re a professional electrician or simply looking for a way to streamline your home DIY projects, the Easy Entry funnel is the perfect tool for the job.

Send email to us

Product Detail

Product Tags

Basic Data

Nominal Current Ratings

Terminal colour	Red	Blue	Black	Yellow
Conductor Range(mm²)	0.5-1.6	1.0-2.6	2.5-4	2.5-6.0
Ring Terminal	24A	32A	37A	48A
Forked Spade	18A	24A	30A	36A
Pin Connector	12A	16A	20A	24A
Lip/Flat Blade	24A	32A	37A	48A
Bullet	12A	16A	/	24A
In Line Splice	24A	32A	/	48A
Quick Connector	24A	32A	/	48A
End Connector	24A	32A	/	48A

These ratings are a notional suggestions and cover most situations. It assumes defect-free workmanship, natural ambient conditions.

Stripping Lengths

Terminal colour	Red	Blue	Black	Yellow
Conductor Range (mm²)	0.5-1.6	1.0-2.6	2.5-4	2.5-6.0
Strip Length for Terminals	4-5mm	5-6mm	5-6mm	6-7mm
Strip Length for Line Splice	7-8mm	7-8mm	7-8mm	7-8mm

In general, the wire should protrude 1mm out of the front of the terminal

SPECIFICATION

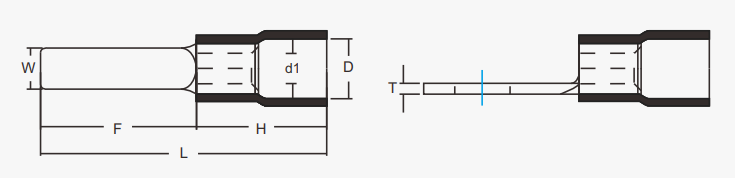

	Single Grip	Double Grip	Dimensions
	Single Grip	Double Grip	W	F	L
H=10.0 d1=1.7 D=4 T=0.75	DBV1.25-9	DBVD1.25-9	2.8	9.0	18.8
	DBV1.25-10	DBVD1.25-10	2.8	10.0	19.8
	DBV1.25-11	DBVD1.25-11	3.0	11.0	20.8
	DBV1.25-13	DBVD1.25-13	3.0	13.0	22.8
	DBV1.25-14	DBVD1.25-14	3.0	14.0	23.8
	DBV1.25-18	DBVD1.25-18	3.0	18.0	27.8
H=10.0 d1=2.3 D=4.5 T=0.8	DBV2-9	DBVD2-9	2.8	9.0	18.8
	DBV2-10	DBVD2-10	2.8	10.0	19.8
	DBV2-13	DBVD2-13	3.0	13.0	22.8
	DBV2-13L	DBVD2-13L	3.0
	DBV2-14	DBVD2-14	3.0	14.0	23.8
	DBV2-18	DBVD2-18	3.0	18.0	27.8
H=13.0 d1=3.4 D=6.4 T=1.0	DBV5.5-10	DBVD5.5-10	2.8	10.0	23.0
	DBV5.5-14	DBVD5.5-14	4.5	14.0	27.0
	DBV5.5-18	DBVD5.5-18	4.5	18.0	31.0
